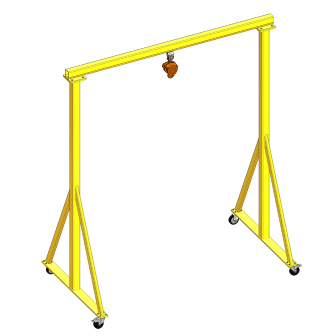

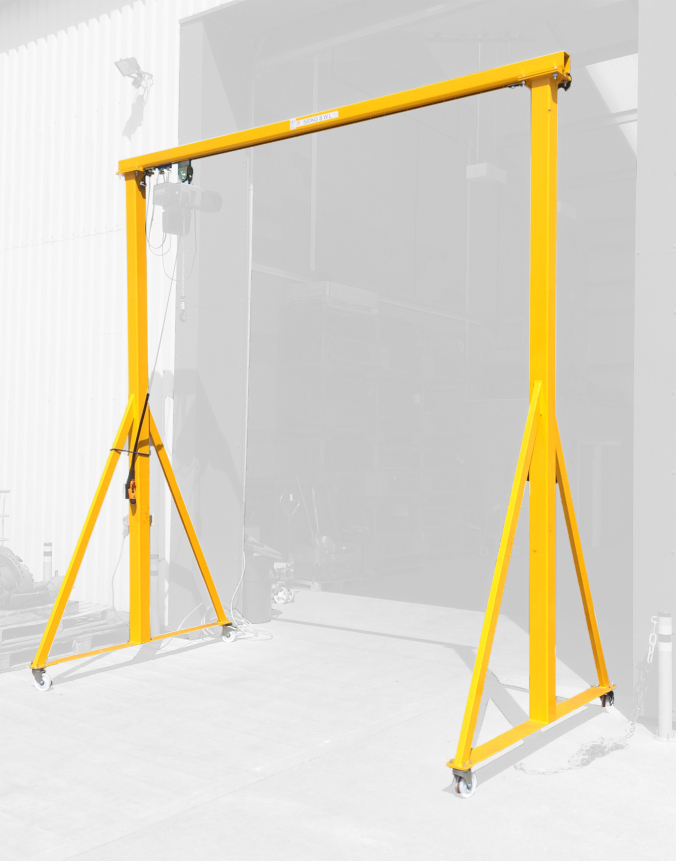

A-frame mobile gantries

Niko A-frame gantries are a 3-piece construction, 2 A style legs and a cross beam which connects the 2 legs together. Niko A-frames can be supplied in a fixed or mobile option, fixed to remain as permanent fixture for one operation. Mobile A-frames can be used in multiple locations. Our mobile A-frame gantries are designed not to be moved under load. The A-frame should be pushed into position, secure the wheels then lift and traverse the load along the beam.

Product variations
Profile A frame
  • 1Free running monorail track
  • 2Simple to install, 3-piece assembly
  • 3Comes with a load trolley to suit manual or electric chain hoist
  • 4Lighter weight construction
  • 5Mobile, can be moved to different locations
I-beam A frame
  • 1I-beam runway will take heavier loads
  • 2Simple to install, 3-piece assembly
  • 3Made bespoke to suit the application
  • 4Low maintenance
  • 5Mobile, can be moved to different locations
Technical data
Advantages
Industries

Fixed or Mobile
I-beam or Profile
SWL 10-2000kg
Span 1000-6000mm
Height to under beam 1000-4000mm
Manual or Electric lifting
Hoist travel: Manual, Geared, Electric
Nylon or Rubber tyre wheels
Wheels: two braked, two free
Material: Steel / Stainless steel
Finish: yellow powder coat / Hot dip galvanised

  • Not fixed to one application, the A-frame can be moved to different locations.
  • Quick and easy to assemble.
  • Can be used when there is no space for a permanent structure.
  • Easy to remove to clear the workshop area.
  • No floor works require (drilling)
  • Manual and geared options can be assembled and used where no power supply is available.
  • Bespoke design to suit your requirements.
General material handling
Industrial products
Maintenance
Warehouse
