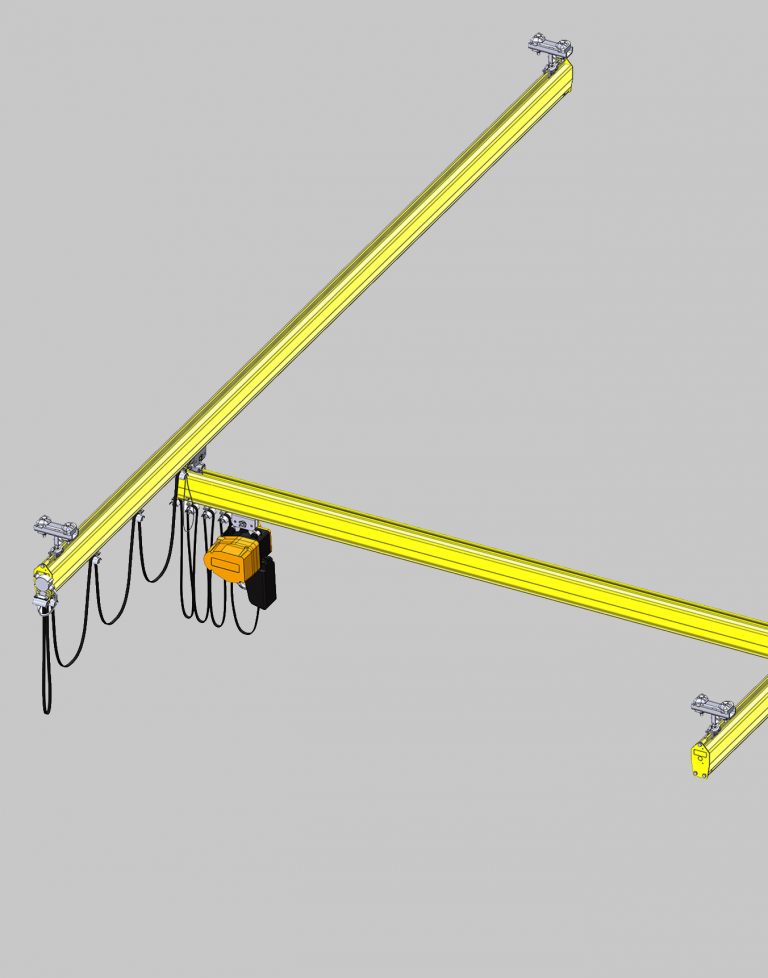

Articulated light cranes
Suspension methods

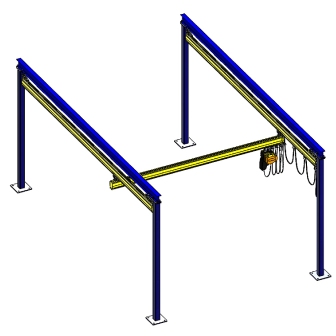

Freestanding light crane

Freestanding cranes are particularly efficient when the roof cannot support an overhead crane. The bridge is mounted to the runway profiles with articulating end carriages to ensure alignment. The runway is often supported to steels running parallel above.

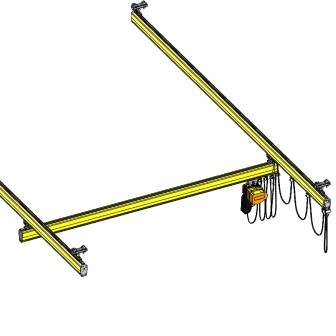

Ceiling mounted cranes

Ceiling mounted systems are ideal when floor space is limited or access by other equipment is required where floor support steels would normally be needed. This option does require that the support structure be suitable for the loads imposed.

Product variations

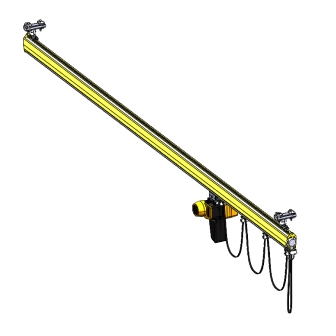

Monorails
  • 18m track profiles
  • 2Loads up to 1500kg
  • 3Manual or powered travel options
  • 4Internal conductor available

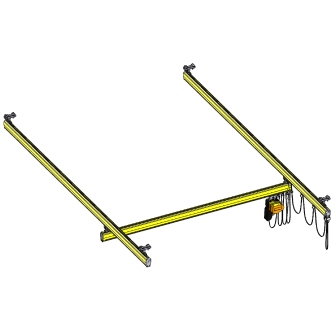

Single girder articulated crane
  • 18m span length
  • 2Loads up to 1500kg
  • 3Lighter weight construction
  • 4Easy relocation and extendibility
  • 5Internal conductor available

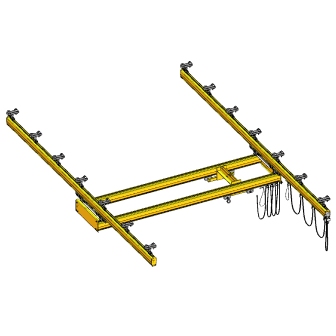

Double girder articulated crane
  • 18m span length
  • 2Loads up to 2000kg
  • 3Option to increase headroom
  • 4Able to support manipulators
  • 5Manual or powered travel options
Technical data
Advantages
Industries

SWL 0 – 2000kg
Largest span 8m
Monorails and cranes
Crane are available in single girder, double girder and raised headroom
3 x steel profiles, 5 x aluminium profiles
Freestanding and ceiling mounted options
Modular system
Push and powered travel options available
Festoon electrics and internal conductor available

  • Easy to operate light crane system boosting production efficiency.
  • Simple assembly making installation and relocation efficient.
  • Only light force to operate, keeping work safe and ergonomic.
  • The light crane system transfers loads along smooth, three-dimensional lines.
  • Profile light crane system has a light self-weight and maximal suspension distances.
  • Enclosed profile construction protects against dust exposure
  • Push travel light crane system offers a self-centralising trolley which minimises load swinging.
Agriculture
Assembly Lines
Warehouse - Storage
General Material Handling
Automotive
Industrial Products
Surface Treatment
Containers
Packaging
