NIKO cranes can supply you with a range of manual chain hoists from the leading hoist manufacturers including Yale and KITO to suit most of lifting applications. If you are unsure of your requirements, our sales team is more than happy to guide you through the process and help you select the correct model.
Model | Art.-No. | Capacity (Kg) | Number of chain falls | Chain dimensionsd x p mm | Lift per 1 m hand chainoverhaul (mm) | Hand pullat WLL (daN) | Weight at standard lift(3 m) (kg) |
---|---|---|---|---|---|---|---|
YL 500 | N04700109 | 500 | 1 | 5 x 15 | 33 | 21 | 9 |
YL 1000 | N04700110 | 1000 | 1 | 6 x 18 | 20 | 30 | 13 |
YL 2000 | N04700111 | 2000 | 1 | 8 x 24 | 14 | 32 | 20 |

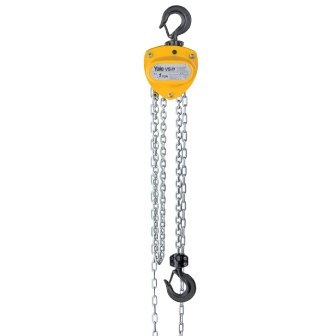

VSIII 0,25/1 | *665322 | 250/1 | 4 x 12 | 50 | 20 | 3,9 | |
VSIII 0,5/1 | *949545 | 500/1 | 5 x 15 | 26 | 21 | 9 | |
VSIII 1,0/1 | *949927 | 1000/1 | 6 x 18 | 24 | 24 | 11,5 | |
VSIII 1,5/1 | *593854 | 1500/1 | 8 x 24 | 17 | 30 | 17,5 | |
VSIII 2,0/1 | *949934 | 2000/1 | 8 x 24 | 19 | 32 | 19 | |
VSIII 2,0/2 | *949941 | 2000/2 | 6 x 18 | 15 | 29 | 17,3 |
