Inertia reels for fall prevention

Inertia reels

The Blocfor fall arrest blocks are rated to 150kg user weight and certified to European Standards. In the event of a fall, the block arrests almost instantaneously and the shock pack brings the user to a controlled stop. The blocks are designed to allow an increased user weight while keeping the impact force on the user below 6kN. The increased weight has been achieved without increase the braking distance experienced by the user.

Product variations

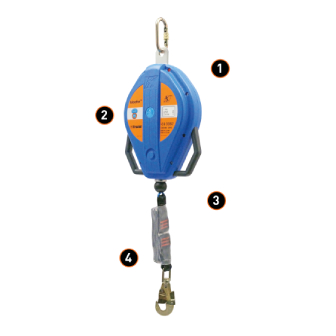

20 ESD SR M10-M47

1Plastic casing made of polyamide / ABS blend
2Compact size
3Optimised ergonomics for easy grasping and handling
4A device anchor point designed to receive large diameter connectors

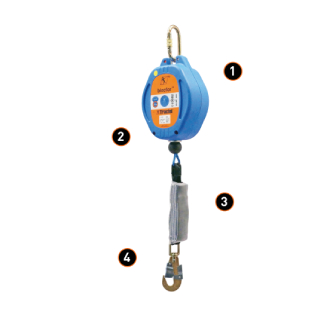

10 ESD SR M10-M47

1For people up to 150kg
2Suitable for all works-at-height
3Automatic fall prevention device that unwinds and rewinds the cable inside the housing
4Can be used in a vertical or horizontal position

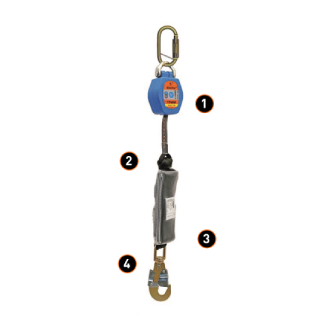

1.8 ESD M23-M47

1Suitable for use in aerial work platforms.
21.8 meters of webbing
3High performance range 150 kg.
4Corresponds to CNB / P / 11.062

Technical data

Advantages

Industries

High-Capacity Range 150 kg. Complies with CNB/P/11.062
Complies with EN 360 and CNB/P/11.060 standards for use on edges with a minimal 0.5 mm curve radius
Fall arrest device with ESD technology suitable for use on terrace roofs
Can be used vertically or with a standard deviation of 20° in relation to vertical
Can be used horizontally without the use of a lanyard between the end of the strap and harness
Flexible unwinding system which does not jerk during operator movement
Responsive system which locks automatically in the event of a fall, reducing the total drop height
Includes Energy System Dissipater (ESD) technology which enables the device to arrest a fall even when the webbing is fully unwound
Integrated fall indicator
Length 5 – 10m
Standard M47 swivel connector at end of shock absorber

Service Free, no need to return for annual strip down. All that is required is a thorough inspection and function test.
150 Kg Capacity to in accordance with CNB/P/11.062; testing loads over 100Kg.
No requirement for intermediate lanyard to be fitted for horizontal use. (no loss of capacity when used horizontally, CNB/P/11.060)
Open ended life span dependent on passing 6 monthly inspection by a competent person
Quick and easy installation
Blocfor is intended for work at height with the risk of falling vertically, as well as for work at height on a horizontal plane with risks of falling on a sharp edge (roof terrace use).

Aircraft services and maintenance

Train and vehicles services and maintenance

Building services and maintenance

Entertainment parks and activities
