Scaffolding runway system

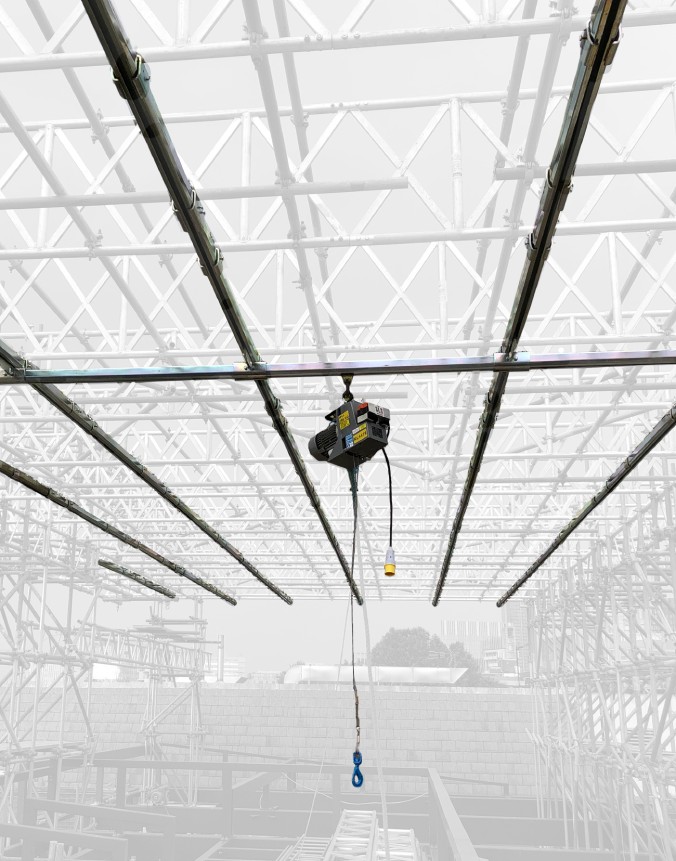

Niko scaffolding runway system provides a lifting and handling solution with a modular profile track system, which will attach to a scaffolding structure. Enables the operator to lift and manipulate heavy loads at height with complete control.

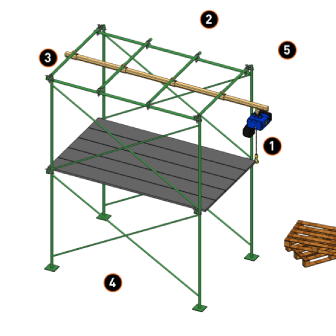

System configuration

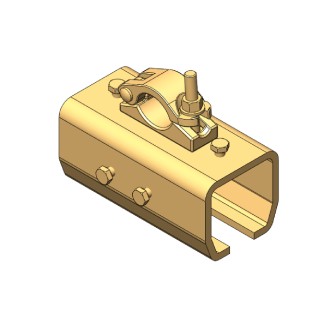

1. Track joint - .B80

This clamp is suitable for connecting and supporting the track profiles to existing scaffolding structure through a standard scaffolding clip welded to the top of the joint.

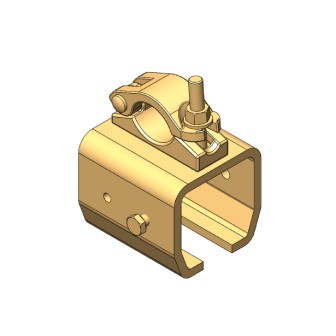

2. Support bracket .B81

This clamp is suitable for supporting the track profiles to existing scaffolding structure through a standard scaffolding clip welded to the top of the support.

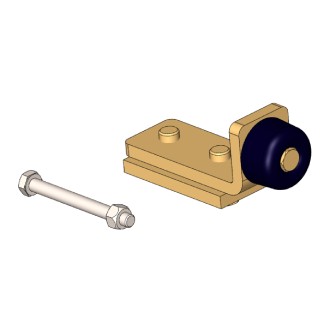

3. Track end stop .X01

At the end of the open profiles, an end stop with a rubber buffer must be positioned. Used in conjunction
with a fixed cross bolt.

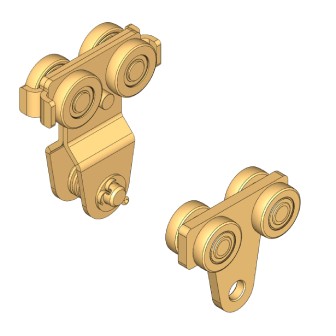

4. Trolleys - .T10 .T48

4-wheel trolleys are suitable for hanging safety belts for fall arrest

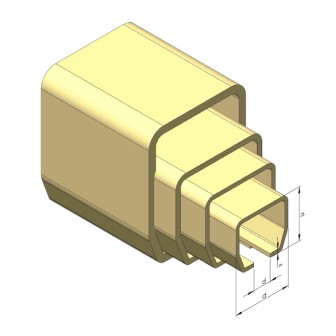

5. Track profiles

Fall arrest range consists of 4 track profiles and can accommodate loads up to 2.000kg.

Specification

Advantages

Downloads

0 – 2000kg SWL
Supplied in 3m lengths
Modular system
Monorails, light crane and bends available
Can be configured for fall arrest
Manual and powered travel
Internal festoon trolley
Suitable for outdoor use
Mounts on 48.3mm diameter scaffolding tube
Supplied as standard in gold zinc passivate
Standard brackets attached to a tube at 90° to the tracking
Manual and electric hoists can be used in conjunction with the system to facilitate lifting.

The profile design is light, fast and simple to install.
Permanent or temporary installation
Lighter than traditional I-beam solutions
Ergonomic material handling with the free running profile tracking
Reduces costs on a construction site; can perform tasks which usually require a tower crane.
Due to the modular nature of the system it can be extended or shortened with off the shelf components.
Can be used in tight areas which are not normally accessible with a standard crane.
Cantilever off scaffolding to enable goods to be picked up from ground level
